C057 Crate Clips for 13 mm Panels - 50 mm Wide, 1.5 mm Grade 50 Steel

C057 Crate Clips for 13 mm Panels - 50 mm Wide, 1.5 mm Grade 50 Steel

Choose C057 for compatible 13 mm wooden or plywood panel joints. This model is 50 mm wide and 1.5 mm thick, with a choice of zinc plating or black electrophoretic coating. Select a finish below, then confirm the complete joint fit with a sample.

Choose your model and surface finish

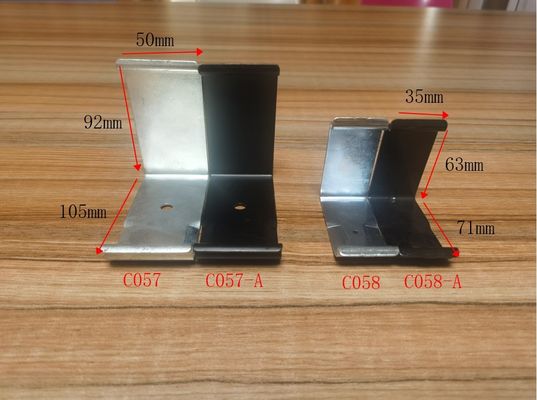

Both models use 1.5 mm sheet. Check the complete panel joint, not panel thickness alone. C057 model overview | C058 model overview.

Standard dimensions and material

The profile dimensions are drawing references, not an overall length x width x height specification. Panel thickness alone does not determine fit: check the complete panel edge and mating joint with a sample before ordering.

Surface finish

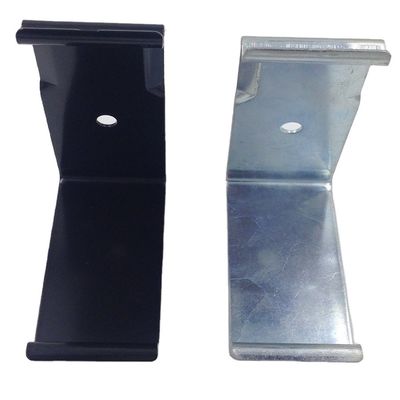

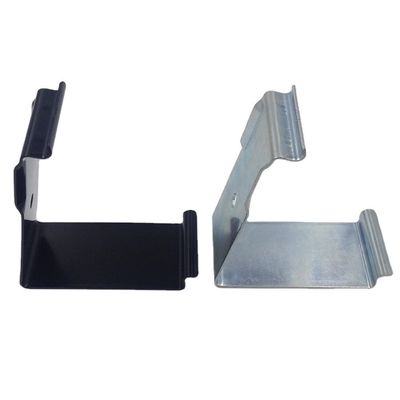

Zinc plated (silver) or black electrophoretic coating (e-coat). Zinc coating thickness is at least 5 micrometres; black e-coat thickness is at least 25 micrometres. Select the required finish when requesting a quotation. Corrosion performance depends on the environment, handling and coating condition; coating thickness is not a salt-spray-hour rating or a guaranteed marine service life.

Installation and removal

1. Align the compatible wooden or plywood panels and verify the joint fit.
2. Press the clip into its intended position by hand.
3. To dismantle the box, engage a suitable pry bar in the clip slot and use leverage to release it.
4. Inspect the clip and joint before reuse. Replace damaged or permanently deformed clips.

Hand installation does not mean tool-free removal. Clip quantity and spacing depend on the complete box design and shipping requirements.

Carton packing and order planning

These carton specifications apply to both zinc-plated and black e-coated standard clips. The shipping figures above exclude any extra pallet or outer packaging. C057 is quoted by carton weight; a separate net/gross breakdown is not specified.

Availability and quotation

• Minimum order: 500 pieces.
• Price range: USD 0.28-0.45 per piece; confirm the quotation for the selected model, finish and quantity.
• Samples are available from stock. Production lead time: 20-35 days.
• Combined crate clip product-line capacity: 40,000 pieces per day, not a separate capacity for each model.

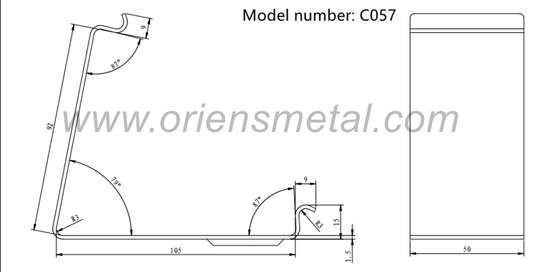

C057 standard drawing

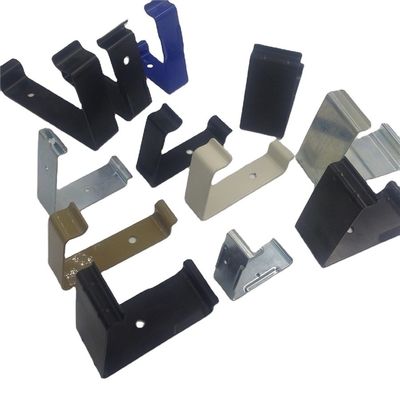

Gallery assortment photos may show other clip designs or coloured powder-coated samples. This page specifies the standard C057 dimensions and finish stated above; coloured samples are not identified as black e-coat.

Installation support and related hardware

Crate clip removal pry bar - engage the tool in the clip slot to release the clip.

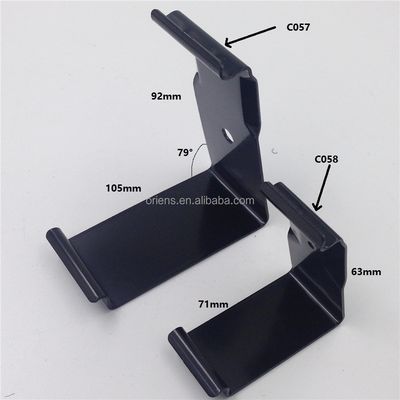

C057 clips for 13 mm panels | C058 clips for 8 mm panels | Crate clip range | Crate assembly video guide

ORIENS supplies clips, hinges and related hardware. Wooden crates and packaging bags are not included; sourcing assistance can be discussed separately. The company was established in 2009, and its founder has worked in international trade since 1998. ISO 9001:2015 refers to the manufacturing factory quality management system within its applicable scope, not certification of these clips.

For a fit check and quotation, send the model, finish, quantity and box joint drawing to sales@oriensmetal.com.
