C057 Heat-Treated Grade 50 Steel Crate Clips for Wooden Boxes
Oriens supplies this crate clip for wooden packaging projects. To review suitability, send the box-joint drawing, panel material and thickness, and the required order quantity. Confirm the clip dimensions and assembly fit with a sample before production.
Listed Product Specifications
| Model |
C057 |
| Material |
Grade 50 carbon steel (Chinese grade 50) |
| Heat treatment |
Heat treated |
| Hardness |
42–46 HRC |

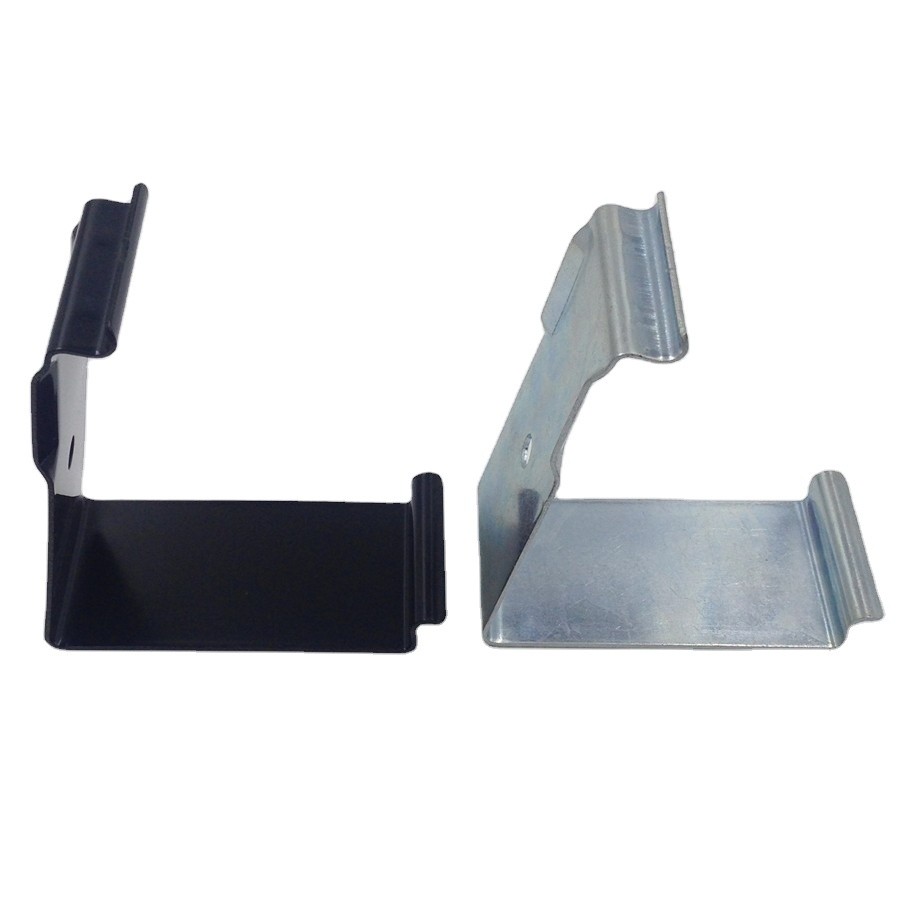

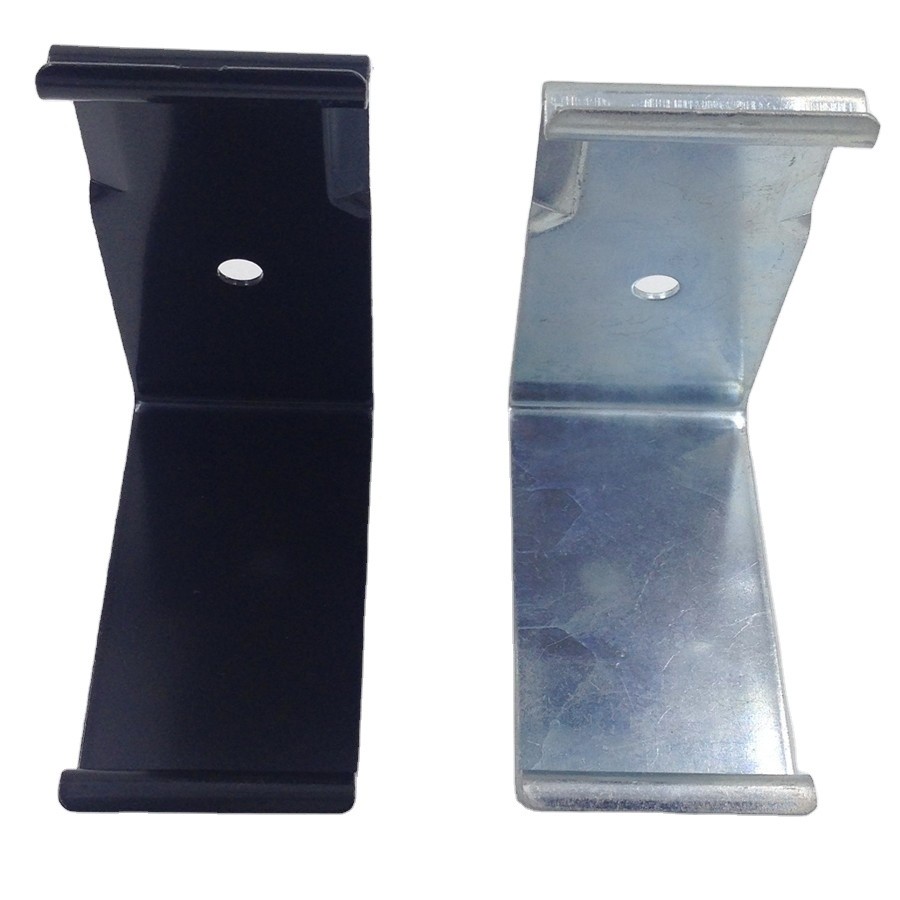

| Finish options |
Zinc plating or electrophoretic coating (e-coat) |
| Unit weight |
135 g |

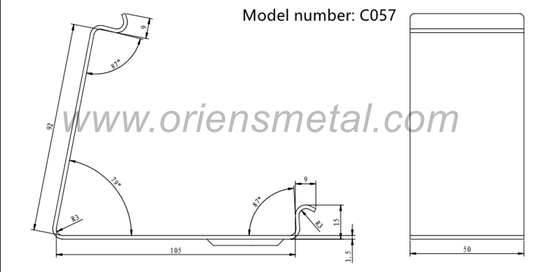

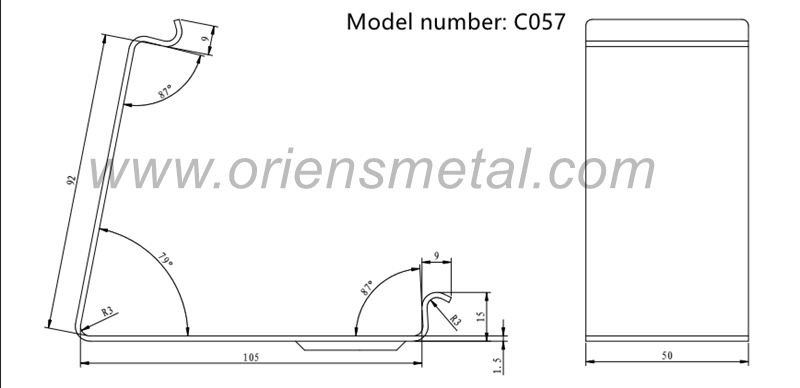

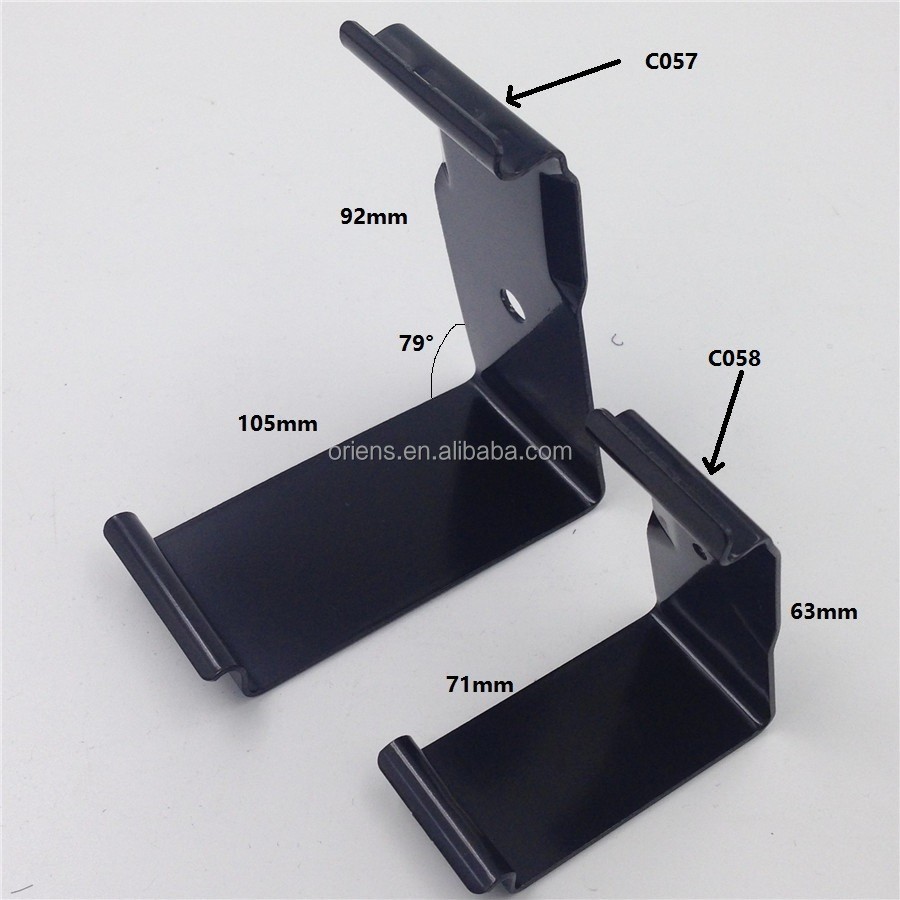

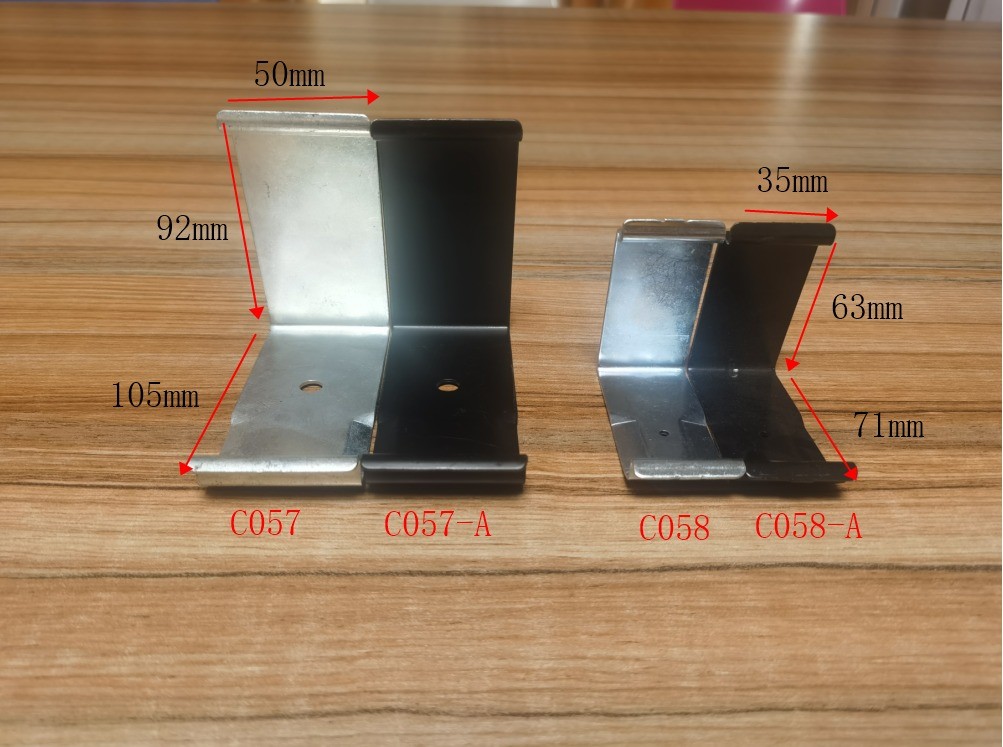

| Drawing profile dimensions |
105 mm and 92 mm; refer to drawing |
| Width |
50 mm |
| Material thickness |
1.5 mm |
| Minimum order quantity |
500 pieces |
| Samples |
Available from stock |
| Production lead time |
20–35 days |
Confirm the required material grade, dimensions, finish and inspection requirements in the drawing and quotation.
Packing and supply
E-coated C057: 125 pieces per carton, carton weight 17.6 kg, carton dimensions 450 × 320 × 170 mm. Confirm packing separately for zinc-plated orders.
Crate clip production capacity is 40,000 pieces per day across the product line. Samples are available from stock; production lead time is 20–35 days, with the order schedule confirmed in the quotation.
Ordering and Selection
For a replacement clip, provide photographs and dimensions of the original part and its assembled box joint. For a new box design, include panel thickness, joint geometry, shipping conditions, order quantity and delivery destination.
Frequently Asked Questions
What is the minimum order quantity?
The minimum order quantity is 500 pieces.
Can the clip be used in detachable or reusable packaging?
Suitability depends on the selected clip and complete box design. Check engagement, installation and removal on the actual assembly. Define inspection and replacement requirements for repeated use.
How do I request a quotation?
Send the drawing or sample details, material and finish requirements, quantity and delivery destination. Sample arrangements and production lead time are confirmed in the quotation.
About Oriens
Beijing Oriens Technology Co., Ltd. was established in 2009. Our founder has worked in international trade since 1998. Manufacturing support comes from our controlled facility in Cangzhou, China. ISO 9001:2015 refers to the factory quality management system within its certified scope.
Contact Oriens

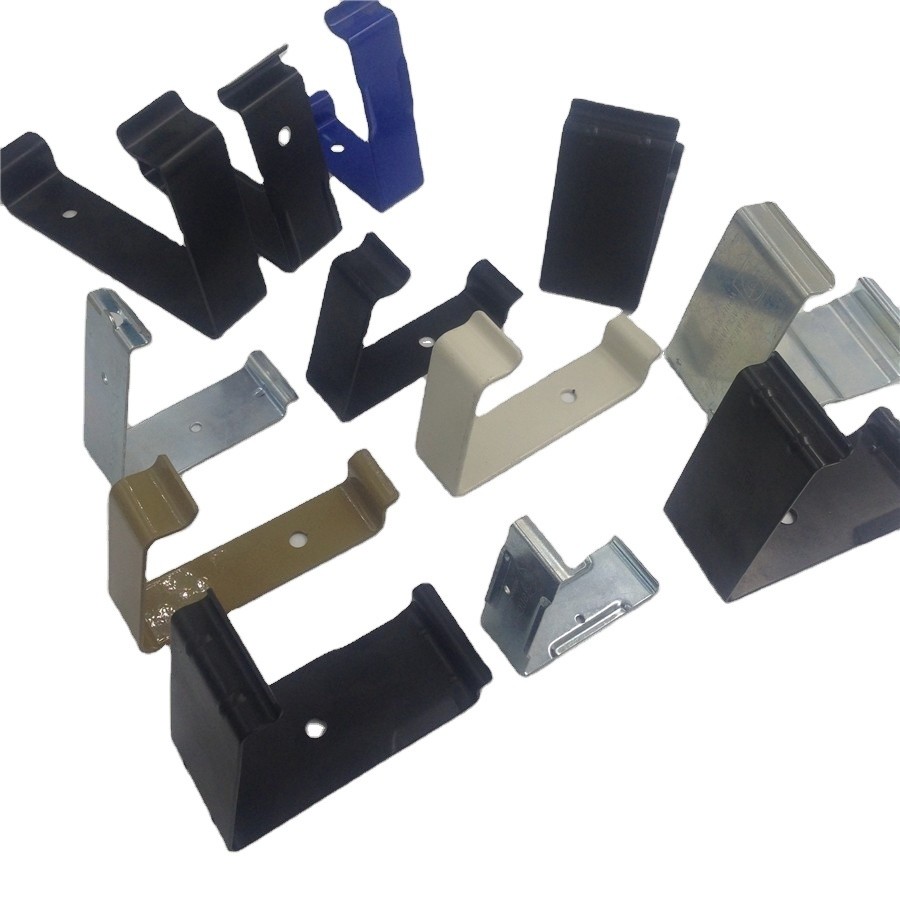

Send your drawings and quantities to sales@oriensmetal.com. Browse the Crate Clip product range to compare listed options.
Supply experience
Read the Crocodile Packaging crate clip supply case study.
