C057 Heat-Treated Grade 50 Steel Crate Clips for Wooden Boxes
ORIENS C057 shipping crate clips are wooden box fasteners for matching 13 mm wooden or plywood panels. They support detachable, reusable crate designs with hand installation and pry-bar removal. Confirm the panel edge and mating joint against the clip drawing before production.
Listed Product Specifications
| Compatible crate panel thickness |
13 mm |
| Model |
C057 |
| Material |
Grade 50 carbon steel (Chinese grade 50) |
| Heat treatment |
Heat treated |
| Hardness |
42–46 HRC |

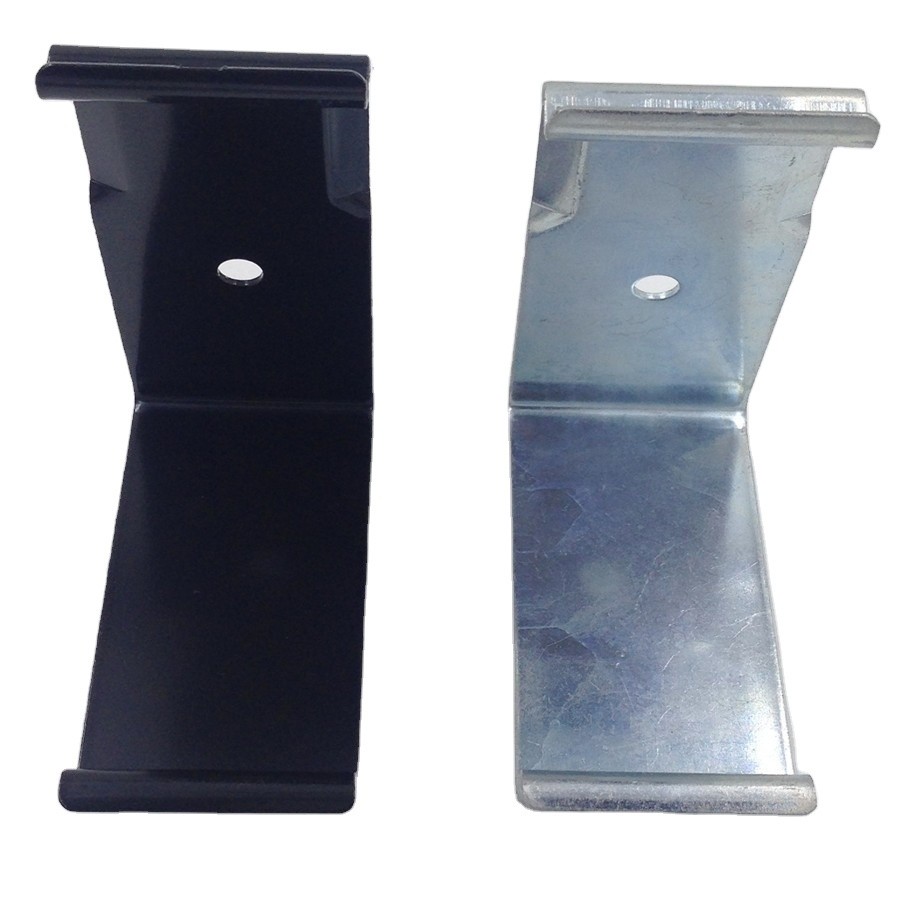

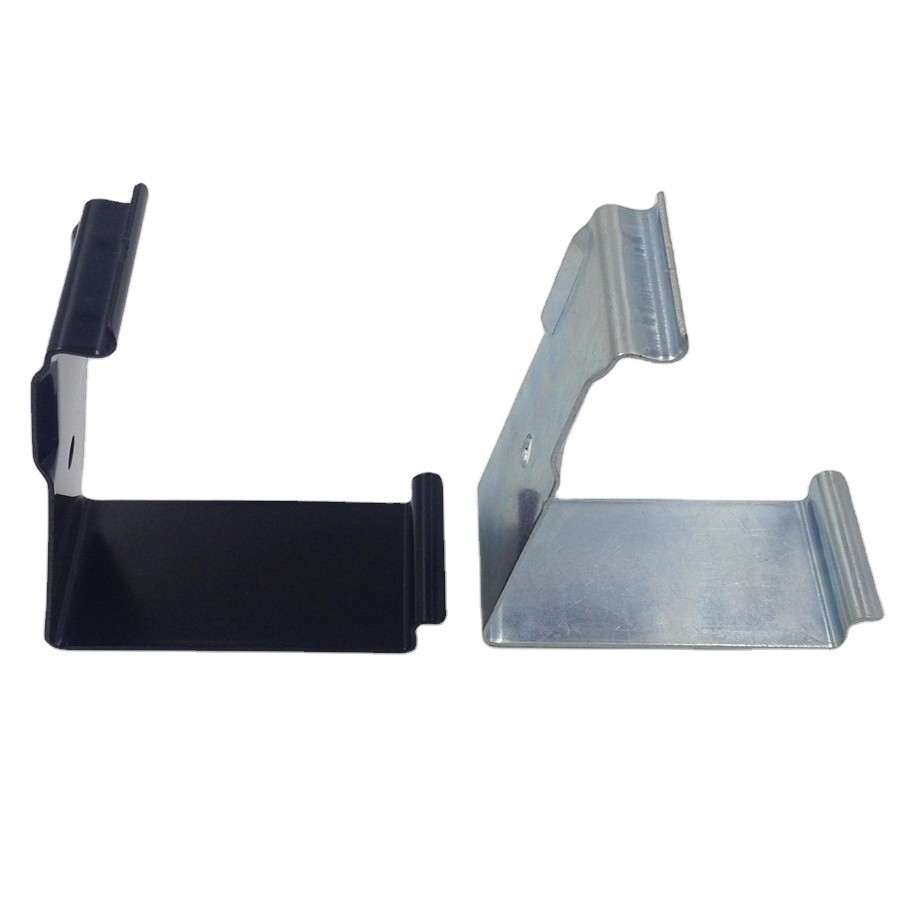

| Finish options |
Zinc plating or electrophoretic coating (e-coat) |
| Unit weight |
135 g |

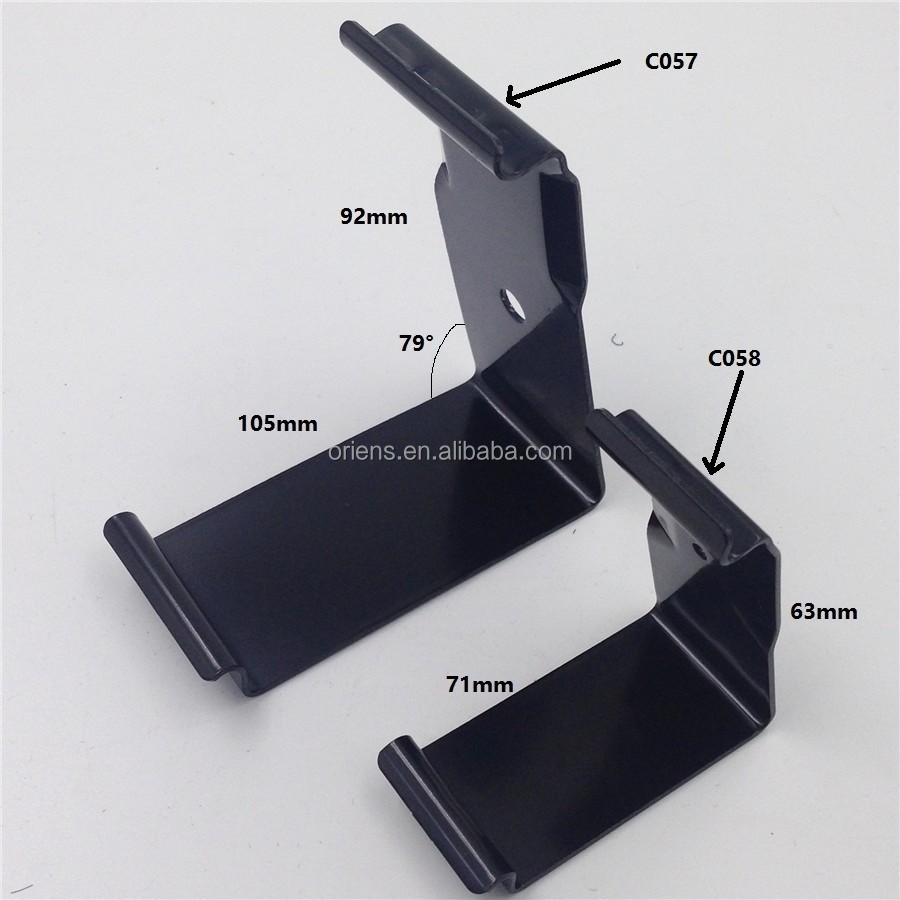

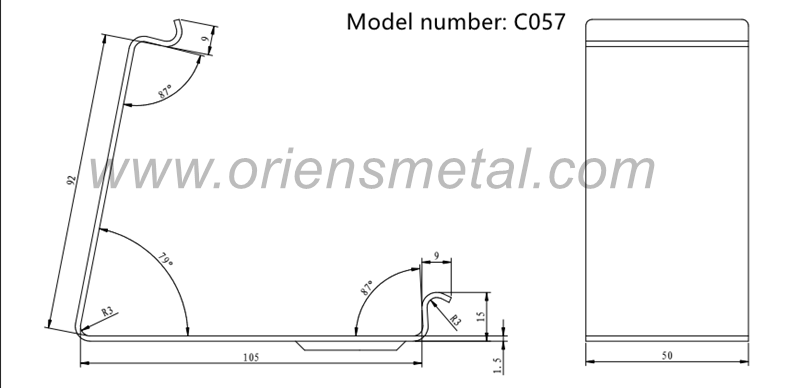

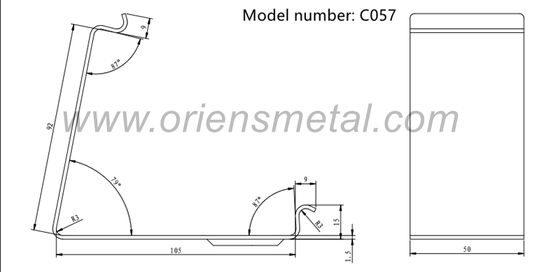

| Drawing profile dimensions |
105 mm and 92 mm; refer to drawing |
| Width |
50 mm |
| Material thickness |
1.5 mm |
| Minimum order quantity |
500 pieces |
| Samples |
Available from stock |
| Production lead time |
20–35 days |
Confirm the required material grade, dimensions, finish and inspection requirements in the drawing and quotation.
Packing and supply
C057, zinc-plated or e-coated: 125 pieces per carton, carton weight 17.6 kg, carton dimensions 450 × 320 × 170 mm. A 500-piece order uses 4 cartons, totaling 70.4 kg and 0.097920 m³ before any extra pallet or overpack.
Crate clip production capacity is 40,000 pieces per day across the product line. Samples are available from stock; production lead time is 20–35 days, with the order schedule confirmed in the quotation.
Hand installation and pry-bar removal

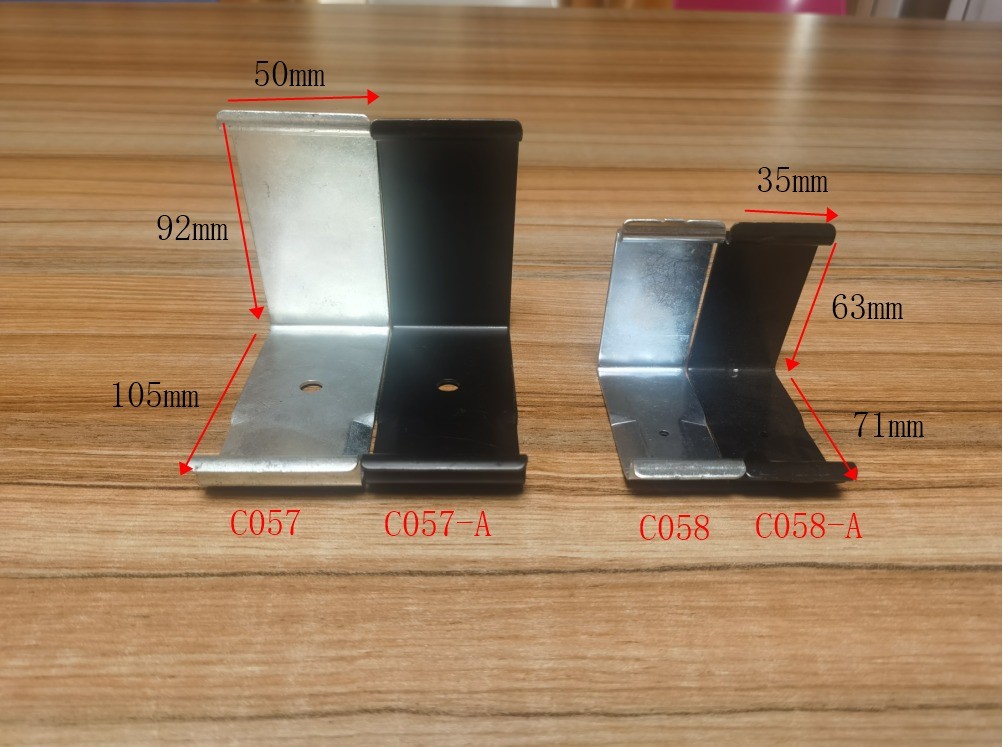

C057 is suitable for 13 mm wooden or plywood crate panels; C058 is suitable for 8 mm panels. Check the panel edge and mating joint against the selected clip drawing before ordering.
These nail-less crate clips are installed by hand on the matching crate joint. To remove a clip, engage the end of a suitable crate clip removal bar in the slot on the clip, then use the bar as a lever to release it. Installation is tool-free; disassembly requires the removal bar.
See the crate clip installation and removal guide.
Ordering and Selection
For a replacement clip, provide photographs and dimensions of the original part and its assembled box joint. For a new box design, include panel thickness, joint geometry, shipping conditions, order quantity and delivery destination.
Frequently Asked Questions
What is the minimum order quantity?
The minimum order quantity is 500 pieces.
Can the clip be used in detachable or reusable packaging?
Suitability depends on the selected clip and complete box design. Check engagement, installation and removal on the actual assembly. Define inspection and replacement requirements for repeated use.
How do I request a quotation?
Send the drawing or sample details, material and finish requirements, quantity and delivery destination. Sample arrangements and production lead time are confirmed in the quotation.
Packaging hardware supply and sourcing support
ORIENS supplies crate clips, hinges and related metal hardware for reusable shipping crates and returnable packaging systems. Wooden crates, packaging bags and other complementary items can be sourced through supplier introductions or procurement assistance on request. These are separately arranged items, not included in a crate clip order unless agreed in the quotation.
