C058 Plywood Crate Clips for 8 mm Panels

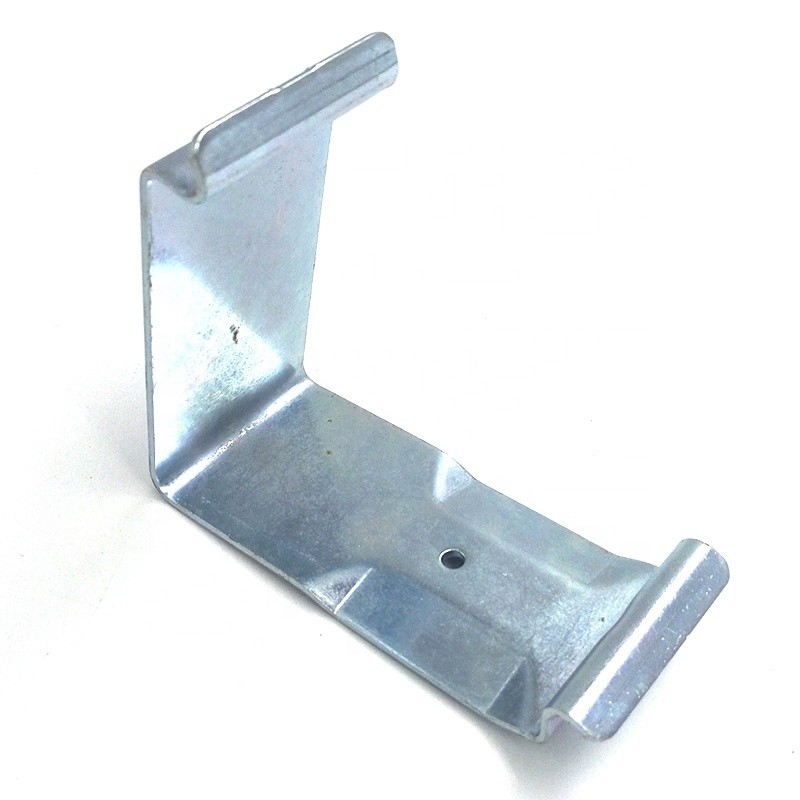

ORIENS C058 plywood crate clips are reusable wooden box fasteners for matching 8 mm panels. These nail-less crate clips are installed by hand and released with a pry bar. Confirm the panel edge and mating joint against the clip drawing before ordering.

Listed Product Specifications

Confirm the required material grade, dimensions, finish and inspection requirements in the drawing and quotation.

C058 drawing reference

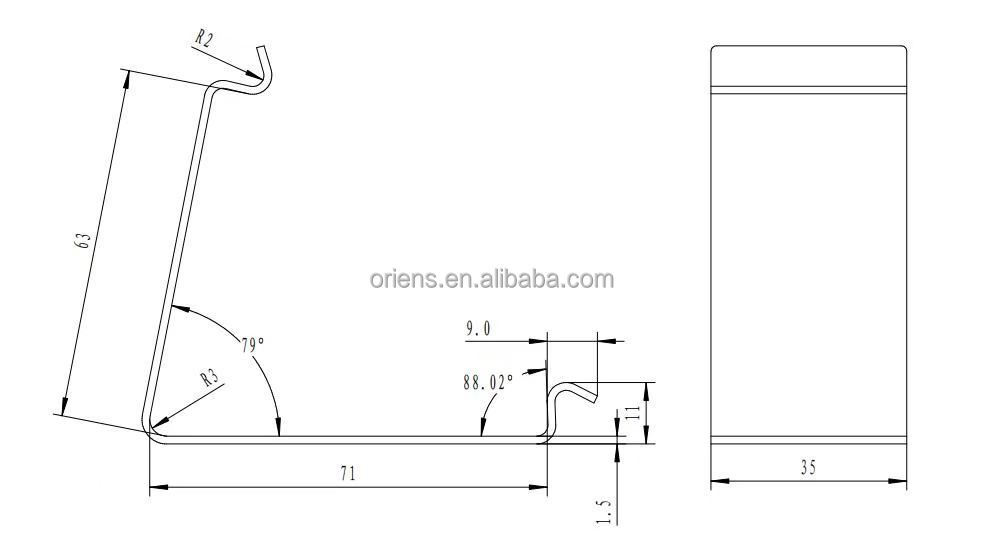

The C058 drawing specifies main profile dimensions of 71 mm and 63 mm, a width of 35 mm and material thickness of 1.5 mm. These are drawing dimensions; check the actual crate joint to confirm fit.

Packing and supply

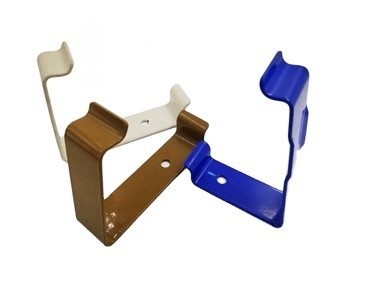

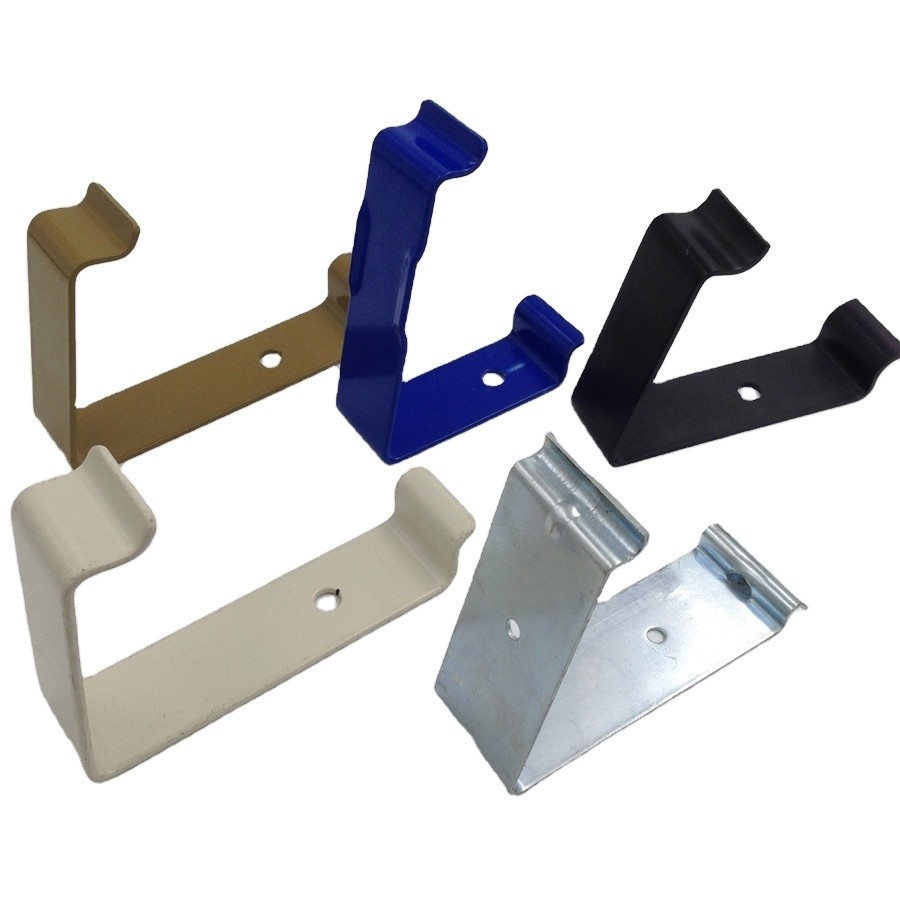

C058, zinc-plated or e-coated: 250 pieces per carton; gross weight 17 kg per carton, including the carton; carton dimensions 490 × 240 × 170 mm. A 500-piece order uses 2 cartons, totaling 34 kg gross and 0.039984 m³ before any extra pallet or overpack. The 68 g unit weight is a reference figure; use carton gross weight for shipment planning.

Crate clip production capacity is 40,000 pieces per day across the product line. Samples are available from stock; production lead time is 20–35 days, with the order schedule confirmed in the quotation.

Hand installation and pry-bar removal

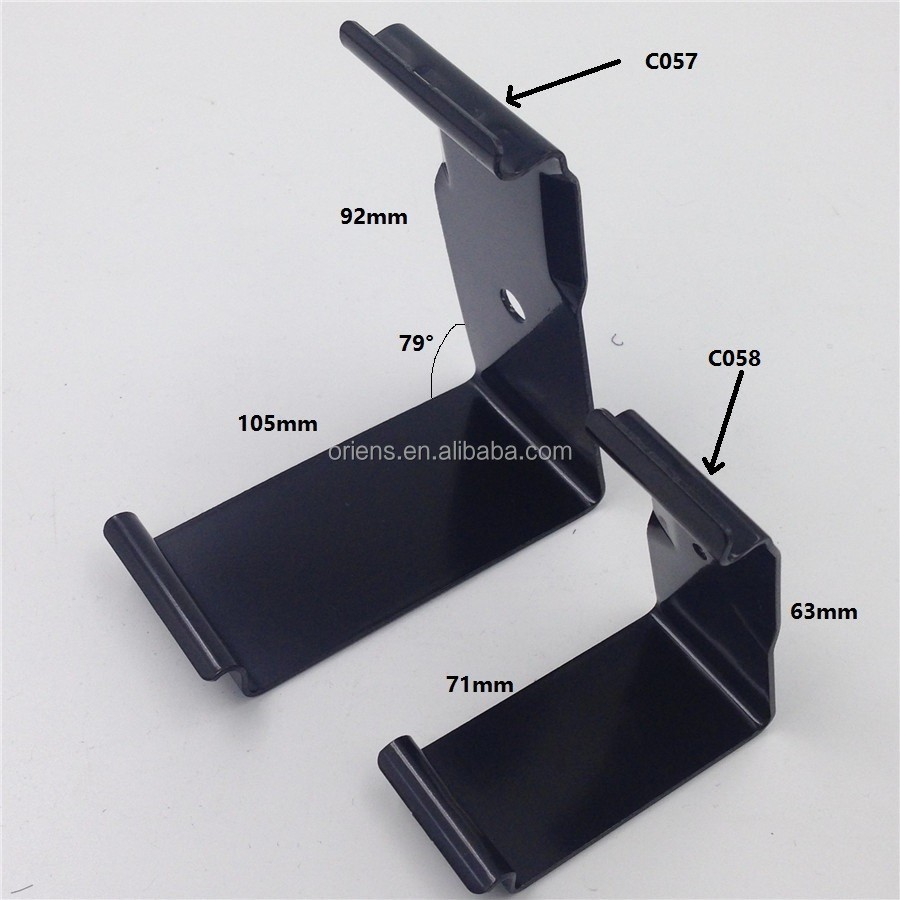

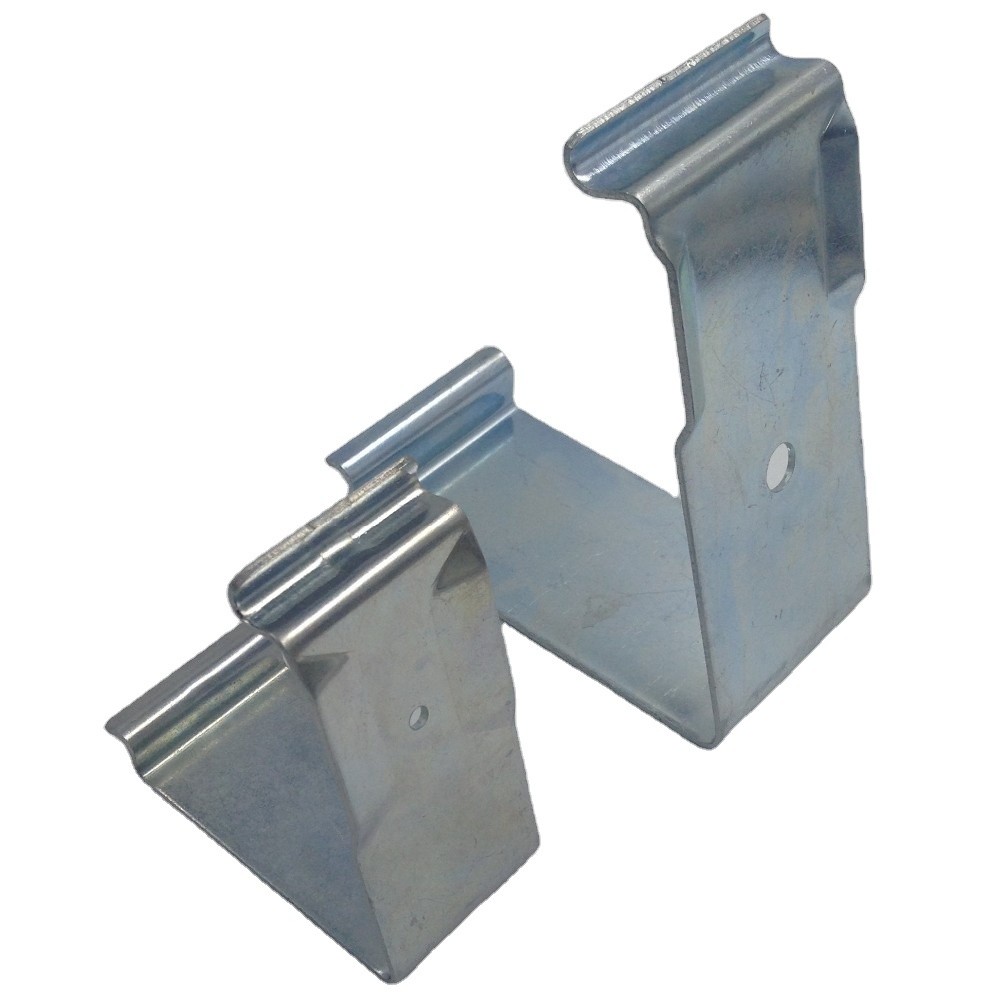

C057 is suitable for 13 mm wooden or plywood crate panels; C058 is suitable for 8 mm panels. Check the panel edge and mating joint against the selected clip drawing before ordering.

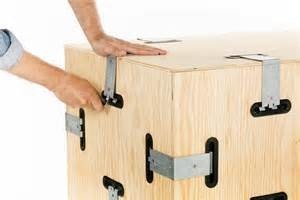

These nail-less crate clips are installed by hand on the matching crate joint. To remove a clip, engage the end of a suitable crate clip removal bar in the slot on the clip, then use the bar as a lever to release it. Installation is tool-free; disassembly requires the removal bar.

Ordering and Selection

For a replacement clip, provide photographs and dimensions of the original part and its assembled box joint. For a new box design, include panel thickness, joint geometry, shipping conditions, order quantity and delivery destination.

Frequently Asked Questions

What is the minimum order quantity?

The minimum order quantity is 500 pieces.

Can the clip be used in detachable or reusable packaging?

Suitability depends on the selected clip and complete box design. Check engagement, installation and removal on the actual assembly. Define inspection and replacement requirements for repeated use.

How do I request a quotation?

Send the drawing or sample details, material and finish requirements, quantity and delivery destination. Sample arrangements and production lead time are confirmed in the quotation.

Packaging hardware supply and sourcing support

ORIENS supplies crate clips, hinges and related metal hardware for reusable shipping crates and returnable packaging systems. Wooden crates, packaging bags and other complementary items can be sourced through supplier introductions or procurement assistance on request. These are separately arranged items, not included in a crate clip order unless agreed in the quotation.

About Oriens

Beijing Oriens Technology Co., Ltd. was established in 2009. Our founder has worked in international trade since 1998. Manufacturing support comes from our controlled facility in Cangzhou, China. ISO 9001:2015 refers to the factory quality management system within its certified scope.

Contact Oriens

Send your drawings and quantities to sales@oriensmetal.com. Browse the Crate Clip product range to compare listed options.

Assembly video and supply experience

Watch the ORIENS crate clip assembly animation on this page to see an illustrative wooden box assembly sequence. For C058, install the clips by hand and use a removal bar for disassembly. The clip profile and positions must match your approved crate design. See the crate clip installation and removal guide.
